Mini Plastic Granules Making Machine Plastic Extrusion Equipment

Name: Mini Plastic Granules Making Machine Plastic Extrusion Equipment
Brand: YongJie
Price: 1 USD

Best Mini Plastic Granules Making Machine Plastic Extrusion Equipment wholesale

plastic processed : HDPE, HDPE/PP, PE/PP, Lldpe, PP, MLLDPE, LDPE

output (kg/h) : 30 - 80 kg/h

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Gearbox, motor

Place of Origin : Jiangsu, China

Brand Name : YongJie

screw design : Double

voltage : 380V 50HZ

dimension(l*w*h) : Model

power (kw) : 22

warranty : 1 year

twin screw type : Co-rotating Parallel Twin-screw

Screw L/D Ratio : 40:1

screw speed (rpm) : 50 - 600 rpm

Color : any color as your require

RPM ( r/min) : 600r/min

torque(N.m) : 115N.M

T/N : 4.2

Inverter : ABB Brand

Motor brand : Siemens Beide

Vacuum degassing : 0.75kw

Screen changer type : manual

Function : plastic compounding

pelletizing type : strand type, die face type

Marketing Type : Hot Product 2019

Condition : New

Warranty of core components : 1 Year

Type : Water cooling strand

Showroom Location : None

Applicable Industries : Manufacturing Plant

Screw diameter (mm) : 35.6

Weight : 8000

Contact Now

Mini plastic granules making machine plastic extrusion equipment

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Taking advantage of oneself technical force we can formulate the typical technical proposal for the customer; to helping fulfill design, equipment process, engineering installation, and testing from raw material storage bin to finished product packing of the whole production line.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

Water trough

SJSL20:1-2m

SJSL-36/51:3m

SJSL-63A/75A:4m

SJSL-75B/95:5/6m

Blowing dryer

SJSL-20: 1.5kw

SJSL-36/51: 1.5kw

SJSL-75A/63A:2.2kw

SJSL-75B/95:3kw,4kw

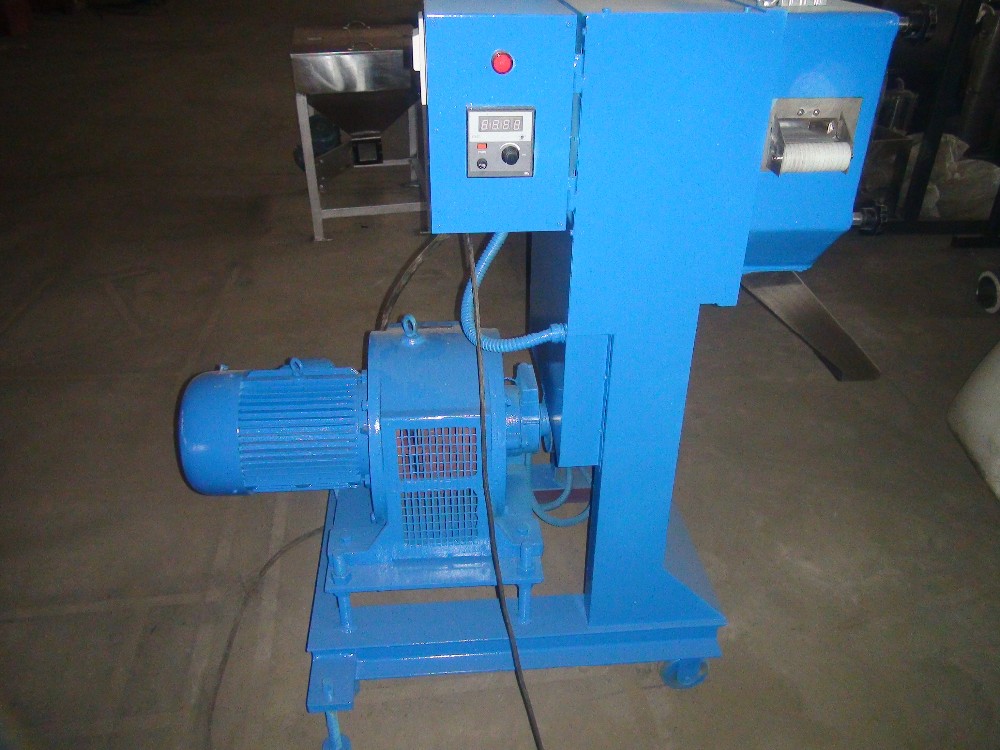

Pelletizer

SJSL-20: 50kg/h 0.75kw

SJSL-36:100kg/h 2.2kw

SJSL-51/63A: 300kg/h 4kw

SJSL-63B/75A: 500kg/h 5.5kw

SJSL-75B/95:1000kg/h

Application for water-cooling strand

1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

ABS, AS, POM, PPS, PET, etc.

2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

PA+SBS, etc.

3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.

4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

optical fiber protection compounds, cable coating material, thermal contraction material,

etc.

5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

filter tip material, acetate fiber material, etc.

6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

additives, etc.

7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.

8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.

9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. how long is the warranty?

We can offer one-year warranty for the whole machine.
